强鹿柴油发动机4045大中维修配件

湖南英珀威机械有限公司专业的强鹿柴油发动机4045大中维修配件销售维修保养服务代理商，服务热线：15580888444
产品咨询

详细描述

John Deere 4045 4.5T/H Piston (m) RE515037 Tier 2 & Tier 3 (2)


PowerTech
 Series
Engine & Equipment Model
4045T/H
For Tier 2 & Tier 3 Applications

4 Valve per Cylinder



CODE 4837

Bore:
4.19 in 106.5 mm

Pin Ø:
1.6250 in (+/- .0002) = 41mm

Con Rod (m):
R500335 (Fractured) (9)
Piston (m):
RE515037

Applications

AGRICULTURAL
6430
6534
7130
CONSTRUCTION
120
1010D
1010E
444H
444HCL
450G
455G
550G
550H
555G
650G
810D
810E
TC444H
310J
310SJ
410J
710J
SKID STEER
280
280 Series II
1)

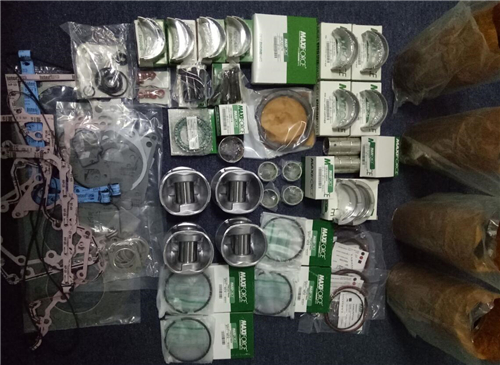

Engine O/H Kit
TRE546978
(Click for Kit Contents)
2)
Engine I/F Kit
TIK546978
(Click for Kit Contents)
Piston-Liner Kit
TRE530616
Consists of:
a)
TRE515037
b)
TRE530613
c)
TR502755
d)
TR116397
e)
TAR65507
f)
TR54114
Main Bearing
TRE65165
Std.
TRE65911
0.010
TRE65165B
0.020
(2)
Use 4
Thrust Bearing
TRE65168
Std.
TRE65912
0.010
TRE65168B
0.020
(2)
Use 1
Con Rod Bearing
TRE65908
Std.
TRE65909
0.010
TRE65908B
0.020
(2)
Use 4
1)
Front Seal
TRE505515
(1)
2)
Rear Seal
TRE44574
3)
Ring Gear
TR114282
(142T)
(5)
TR28811
(129T)
(5)
4)
Crankshaft
TRE504638
(4)
TRE506195
(3)
1)
O/H Gasket Set
TRE536962
2)
Head Gasket Set
TRE536967
3)
Head Gasket
TR116515
4)
Oil Pan Gasket
TR97342
(5)
TR521493
(5)
5)
Rocker Cov Gsk
TR524498
TR524499
1)
Bush, Con Rod
TR114082
x4
2)
Bolt, Con Rod
TR501124
x8
3)
Bush, Bal. Shaft
TR115299
x6
4)
Bush, Camshaft
TR119874
x1
5)
Bal. Shaft R/H
TRE500448
6)
Bal. Shaft L/H
TRE500449
7)
Cam Follower
TR123565
x8
1)
Cyl Hd Cap Screw
TR502511
x18
2)
Tensioner, Belt
TRE518097
3)
Con Rod
TRE500608
4)
Oil Cooler
TRE59296
(5 Plates)
TRE56690
(7 Plates)
TRE59298
(9 Plates)
1)
Water Pump
TRE500734
(5)
(High Flow)
TRE546918
(5)
2)
Water Pump Cov
TRE508566
3)
Water Pump Gsk
TR123417
4)
Pump, Oil
TRE504914
(5)
TRE521756
(5)

Valve Section

(Click image to zoom the valve diagram.)

Valve, Intake
TRE531221
Std.
(5)
TRE518080
Std
(5)
Valve, Exhaust
TRE518081
Std.
1)
Insert, Valve In
TRE518082
Std.
2)
Insert, Valve Ex
TRE518083
Std.
1)
Seal, Valve
TRE526519
x16
(5)
TRE519115
x16
(5)
2)
Lock, Valve
TR502371
x32
(5)
1)
Spring, Valve
TR518872
x16
(5)
TRE516486
x16
(5)
1)
Injector Tube
TRE543935
x4
2)
Injector O-Ring
TRE528349
TRE530609
1)
Thermostat
TRE522076
180° F
(5)
TRE538289
180º F
(5)
TRE64354
180° F
(5)
2)
Thermostat Cover
TR501130
(5)
3)
Water Temp Sensor
TRE51774
(5)
4)
Water Temp Sensor
TRE52722
(5)
5)
Oil Pressure Sensor
TRE167207
(5)
6)
Crankshaft Sensor
TRE519144
(5)
7)
Fuel Pressure Sensor
TRE522794
(5)
8)
Temperature Sensor
TRE522823
(5)
Fuel Transfer Pump
TRE66153
(5) (6)
TRE68345
(5) (7)
TRE502513
(5) (8)
TRE517230
(5)
Glow Plug
1)
TRE502079
(11 V)
2)
TRE504580
x4
(10 V)
3)
Air Heater
TRE502668
(12 V)

(1) 1 Piece Unitized Seal and Wearsleeve; Replaces TRE59810, RE538097.

(2) Proper bearing journal radius must be maintained during the machining of the crankshaft to ensure proper operation.

(3) Taper Nose.

(4) Straight Nose.

(5) Check application for proper usage.

(6) Line Connections are both threaded.

(7) Line Connections are one hose barb & one threaded.

(8) Line Connections are two hose barbs.

(9) Machine split and fractured split connecting rods may both be used in the same engine, but the correct con rod bolts must be used for each connecting rod.
