Perkins3012柴油发动机威尔逊P850E柴油发电机配件涡轮增压器

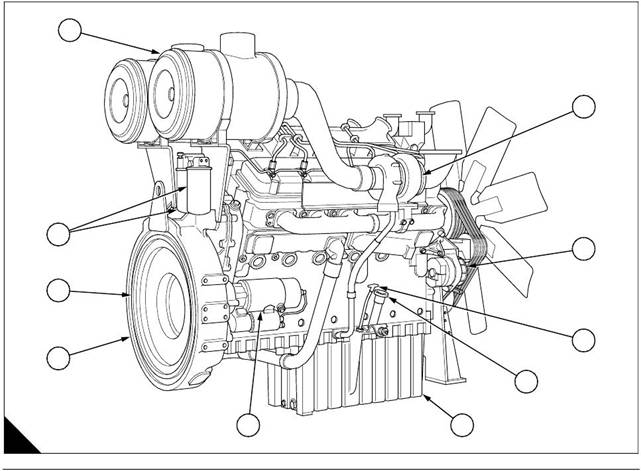

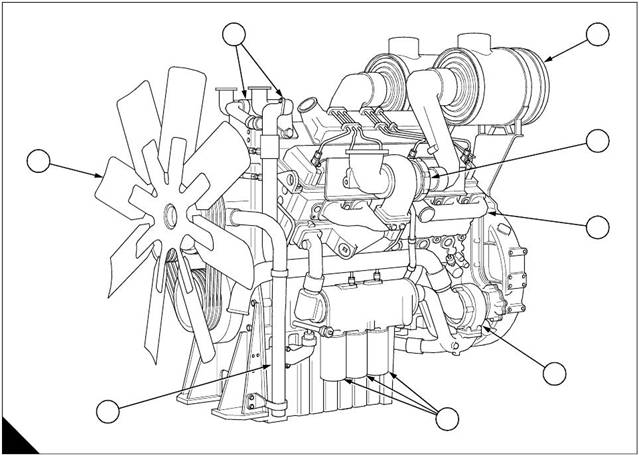

详细描述
项目 零配件号码 最近的部分号码 描述

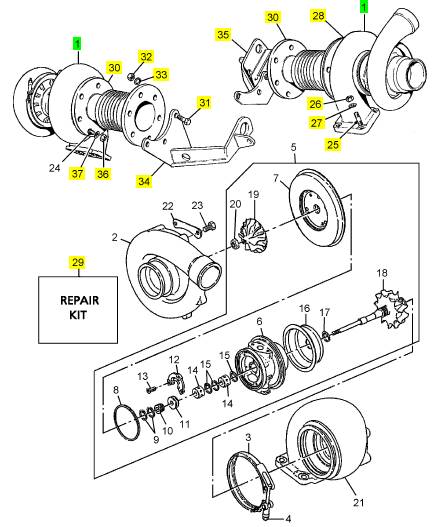

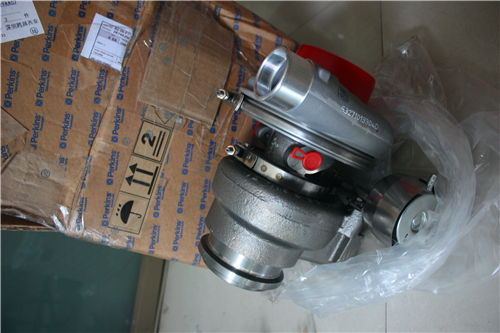

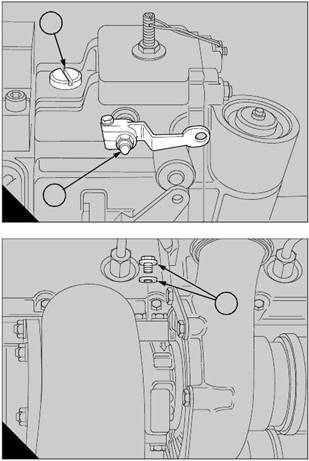

1 CV13727/1 Z 2 CV13727/1 Z 涡轮增压器
25 CV378 8 CV378 图钉
26 CV235 8 CV235 螺帽
27 2131 A010 8 2131 A010 垫圈
28 CV13795 2 CV13795 密封垫 -排气
29 KRP1249 1 KRP1249 修补装备 -涡轮增压器
30 CV13728 2 CV13728 手风箱
31 ST43604 6 ST43604 螺拴
32 CV1343 6 CV1343 公制的螺帽
33 2131 A012 6 2131 A012 垫圈
34 CV5654 1 CV5654 托架
35 CV5655 1 CV5655 托架
36 CV235 12 CV235 螺帽
37 2131 A010 12 2131 A010 垫圈
项目 零配件号码 最近的部分号码 描述
2 1 壳
3 OE45224 1 OE45224 联结器
4 CV3017 1 CV3017 锁紧螺母
5 OE45510 1 OE45510 壳
21 1 壳
22 OE45275 4 OE45275 砂箱夹
23 OE45220 12 OE45220 螺拴
24 CV2533 6 CV2533 图钉
项目 零配件号码 最近的部分号码 描述
6 1 壳
7 OE45507 1 OE45507 背板
8 OE45508 1 OE45508 密封O型圈
9 OE41325 2 OE41325 圈
10 OE45230 1 OE45230 间隔器
11 OE45234 1 OE45234 桥环
12 OE45283 1 OE45283 止推瓦
13 OE45509 3 OE45509 螺旋
14 2 瓦
15 OE45235 3 OE45235 圈
16 OE45281 1 OE45281 复缘
17 CV3005 1 CV3005 圈
18 OE45280 1 OE45280 轮
19 CV9940 1 CV9940 轮
20 OE45188 1 OE45188 锁紧螺母

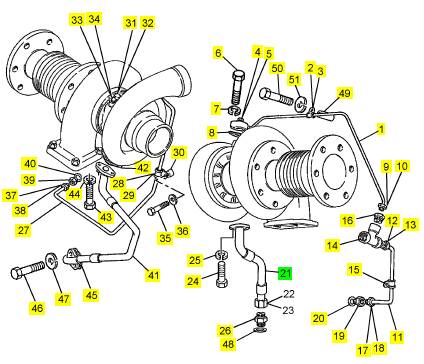

项目 零配件号码 最近的部分号码 描述
1 CV13732 1 CV13732 油管
2 OE9691 2 OE9691 夹
3 OE9692 2 OE9692 衬套
4 ST46076 1 ST46076I 栓塞
5 ST49851 1 ST49851 垫圈
6 ST44444 2 ST44444 固定螺钉
7 2134 A008 2 2134 A008 垫圈
8 DV807 2 OE50898 密封垫
9 ST46007 1 ST46007 套筒
10 ST46032 1 ST46032 螺帽
11 CV12871 1 CV12871 油管
12 ST46008 1 ST46008 套筒
13 ST46033 1 ST46033 螺帽
14 ST46183 1 ST46183 TEEPIECE
15 OE9691 1 OE9691 夹
16 ST46269 1 ST46269 异径管接合器
17 ST46008 1 ST46008 套筒
18 ST46033 1 ST46033 螺帽
19 ST49459 1 ST49459 承接器
20 ST49891 1 ST49891 垫圈
21 CV13733 1 CV13733 油管
24 2314 C044 2 2314 C044 固定螺钉
25 2134 A008 2 2134 A008 垫圈
26 ST20557 1 ST20557 承接器
27 CV13729 1 CV13729 油管
28 OE9691 1 OE9691 夹
29 OE9692 1 OE9692 衬套
30 CV1726 1 CV1726 距离块
31 ST46076 1 ST46076I 栓塞
32 ST49851 1 ST49851 垫圈
33 ST44444 2 ST44444 固定螺钉
34 2134 A008 2 2134 A008 垫圈
35 ST43506 1 ST43506 螺拴
36 2134 A008 1 2134 A008 垫圈
37 ST46007 1 ST46007 套筒
38 ST46032 1 ST46032 螺帽
39 ST49449 1 ST49449 承接器
40 ST49853 1 ST49853 垫圈
41 CV17106 1 CV17106 油管
42 OE50899 2 OE50899 切片密封垫的板
43 2314 C044 2 2314 C044 固定螺钉
44 2134 A008 2 2134 A008 垫圈
45 CV20236 1 CV20236I 密封垫
46 ST43556 2 ST43556 螺拴
47 2134 A010 2 2134 A010 垫圈
48 ST49891 1 ST49891 垫圈
49 CV7361 2 CV7361 距离块
50 ST43511 2 ST43511 螺拴
51 2134 A008 2 2134 A008 垫圈
项目 零配件号码 最近的部分号码 描述
1 CV17435 24 CV21058 进气门
2 OE43638 24 OE43638 位子
3 CV11403 24 CV11403 阀弹簧
4 OE43262 24 OE43262 位子
5 OE42571 48 OE42571 阀筒夹
6 CV17434 24 排气阀
7 OE43638 24 OE43638 位子
8 CV11403 24 CV11403 阀弹簧
9 CV18761 24 CV18761 回转的人
10 OE42570 48 OE42570 阀筒夹
