项目 零配件号码 新件号 描述

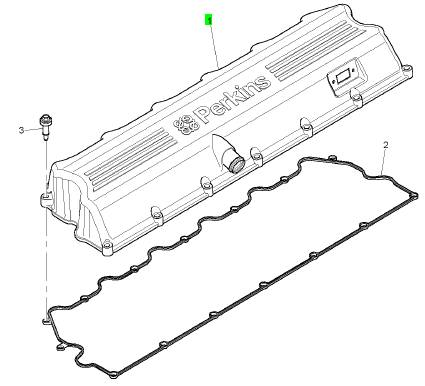

1 CH11512 1 CH11512 CYL 盖 ASSY
项目 零配件号码 新件号 描述

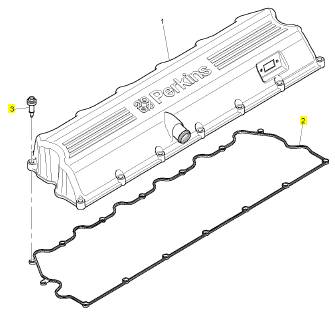

2 CH11353 1 CH11353 密封垫 - 摇臂室盖
3 CH10955 15 CH10955
项目 零配件号码 新件号 描述

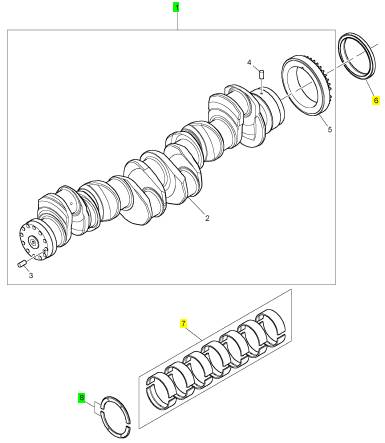

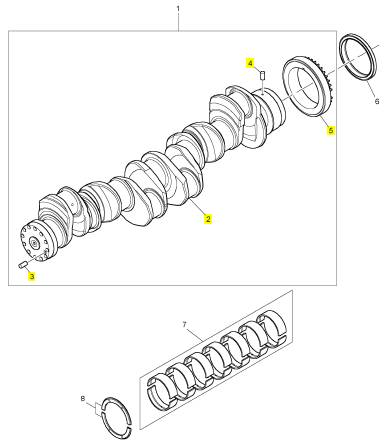

1 T401471 1 T401471 曲轴组合
1 CH11521 1 CH11521 曲轴组合
6 CH11379 1 CH11379 密封垫 -前油封
7 KRP3122 1 KRP3122 曲轴瓦
7 KRP3118 1 KRP3122 曲轴瓦
(7) KRP3116/025 1 KRP3116/025 曲轴瓦 -U/S
(7) KRP3116/050 1 KRP3116/050 曲轴瓦 -U/S
(7) KRP3117/025 1 KRP3117/025 曲轴瓦 -U/S
(7) KRP3117/050 1 KRP3117/050 曲轴瓦 -U/S
(7) CV11001 1 CV11001 要点壳轴承 (-)0.63 MM
(7) CV11002 1 CV11002 要点壳轴承 (-)0.127 MM
(7) CV11003 1 CV11003 要点壳轴承 (+)0.63 MM
(7) CV11004 1 CV11004 要点壳轴承 (+-)0.63 MM
8 KRP3206 1 KRP3206 止推片
项目 零配件号码 新件号 描述
2 1 曲轴
3 CH10652 1 CH10652 销
4 CH10653 1 CH10653 合钉
5 CH12793 1 CH12793 曲轴传动机构
项目 零配件号码 新件号 描述
1 CH11552 1 CH11552 堵塞盖
2 CH10310 1 CH10310 密封垫
3 CH11554 3 CH11554 螺拴
4 CH10100 3 CH10100 垫圈
5 CH10539 2 CH10539 堵塞盖
6 T400196 2 T400196 密封垫
7 CH10538 2 CH10538 螺拴
8 CH10255 2 CH10255 垫圈
9 CH11895 2 CH11895 螺拴
10 CH10255 2 CH10255 垫圈
11 1 堵塞盖
12 CH11560 1 CH11560 密封垫
13 CH10815 2 CH10815 螺拴
14 CH10255 2 CH10255 垫圈
项目 零配件号码 新件号 描述

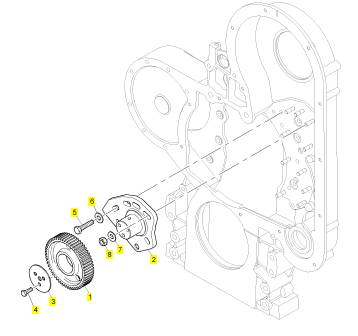

CH10567 1 CH10567 螺拴

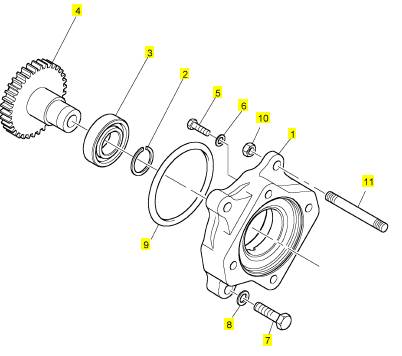

1 CH10594 1 CH10594 承接器
2 CH10581 1 CH10581 扣环
3 CH10004 2 CH10004 滚珠轴承
4 CH10592 1 CH10592 燃料喷射泵传动机构
5 CH10583 3 CH10583 螺拴
5 CH10541 4 CH10255 垫圈
6 CH10593 3 CH10593 垫圈
7 CH10550 3 CH10550 螺拴
8 CH10255 4 CH10255 垫圈
9 CH10590 1 CH10590 密封O型圈
10 CH10798 1 CH10798 螺帽
11 CH12764 1 CH12764 图钉
项目 零配件号码 新件号 描述

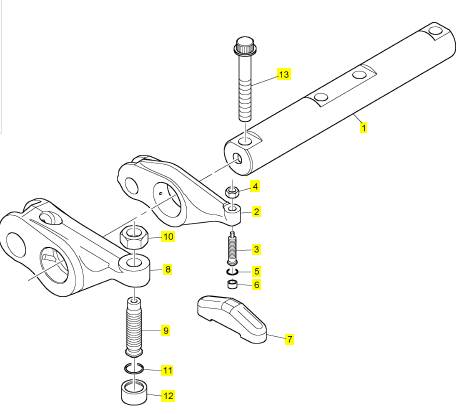

1 CH12695 3 CH12695 摇杆轴
1 CH10685 3 CH12695 摇杆轴
2 T400223 12 T400223 摇臂组合
2 CH11165 12 T400223 摇臂组合
3 CH12701 12 CH12701 螺旋
3 CH11162 12 检查历史 螺旋
3 CH11916 12 检查历史 螺旋
4 T400403 12 T400403 螺帽
4 CH10688 12 T400403 螺帽
4 CH12697 12 T400403 螺帽
5 CH10229 12 CH10229 密封O型圈
6 CH12702 12 CH12702 枢
6 CH10689 12 CH12702 钮扣
6 CH12510 12 CH12702 枢
7 CH12831 12 CH12831 结轴块
7 CH10680 12 CH12831 结轴
8 T400224 6 T400224 摇臂组合
8 CH11161 6 T400224 摇臂组合
8 CH12698 6 T400224 摇臂组合
9 CH11076 6 CH11076 螺旋
10 CH11077 6 CH11077 螺帽
11 CH11079 6 CH11079 密封O型圈
12 CH11078 6 CH11078 钮扣
13 CH10566 4 CH10566 螺拴
项目 零配件号码 新件号 描述

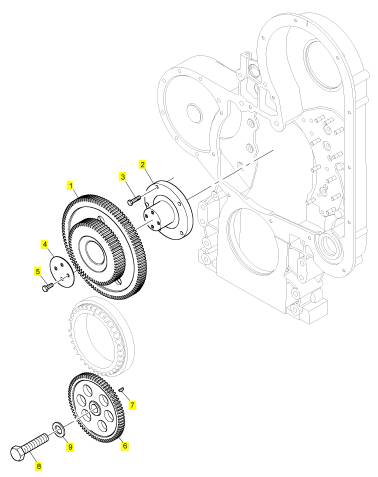

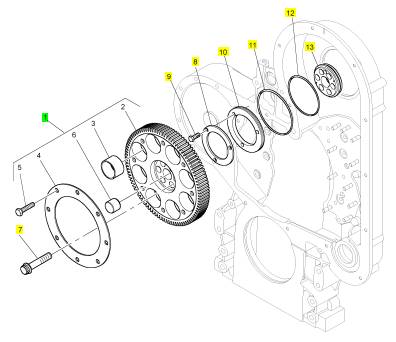

1 CH11526 1 CH11526 惰轮传动机构
1 CH10963 1 CH10963 惰轮传动机构
2 CH10876 1 CH10876 螺木桩
3 CH10611 5 CH10611 螺拴
4 CH10619 1 CH10619 推力板
5 CH10621 4 CH10621 螺拴
6 CH10622 1 CH10622 油泵传动机构
7 CH10005 1 CH10005 半圆键
8 CH10609 1 CH10609 螺拴
9 CH10610 1 CH10610 垫圈
项目 零配件号码 新件号 描述
1 T400235 1 T400235 凸轮轴传动机构
1 CH10910 1 T400235 凸轮轴传动机构
7 CH10616 6 CH10616 螺拴
8 CH10617 1 CH10617 推力板
9 CH10618 3 CH10618 螺拴
10 CH10625 1 CH10625 密封垫
11 CH10620 1 CH10620 密封O型圈
12 CH10612 1 CH10612 密封O型圈
13 CH10627 1 CH10627 承接器
项目 零配件号码 新件号 描述
1 CH10635 1 CH10635 惰轮传动机构
2 CH10623 1 CH10623 螺木桩
3 CH10614 1 CH10614 推力板
4 CH10621 3 CH10621 螺拴
5 CH10609 1 CH10609 螺拴
6 CH10615 1 CH10615 垫圈
7 CH10615 5 CH10615 垫圈
8 CH10290 5 CH10798 螺帽
项目 零配件号码 新件号 描述

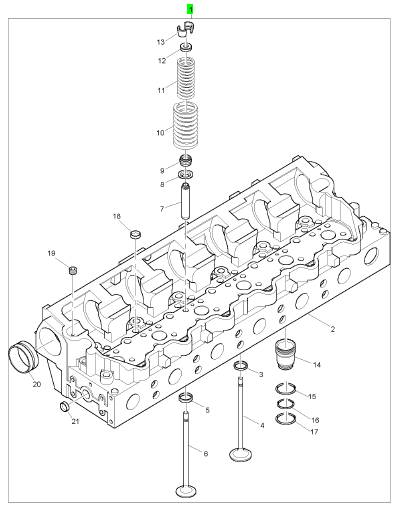

1 CH11399 1 CH11399 汽缸盖组合
1 CH11399 1 CH11399 汽缸盖组合
1 CH11399 1 CH11399 汽缸盖组合
(1) CH11399 1 CH11399 汽缸盖装备 -EXCH
(1) CH11399 1 CH11399 汽缸盖装备 -EXCH
(1) CH11399 1 CH11399 汽缸盖装备 -EXCH

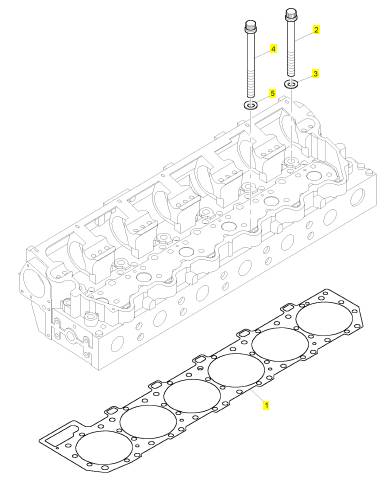

项目 零配件号码 新件号 描述
CH10708 6 CH10708 套筒
1 1 密封垫 - 汽缸盖
2 CH10712 16 CH10712 螺拴
3 CH10711 16 CH10711 垫圈
4 CH10713 10 CH10713 螺拴
5 CH10711 10 CH10711 垫圈
项目 零配件号码 新件号 描述

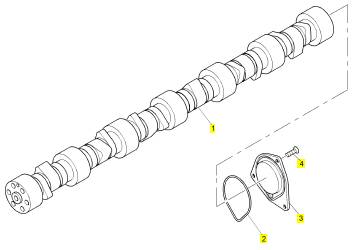

1 CH11520 1 CH11520 凸轮轴
2 CH10587 1 CH10587 密封O型圈
3 CH10588 1 CH10588 端盖
4 CH10589 3 CH10589 公制的螺旋

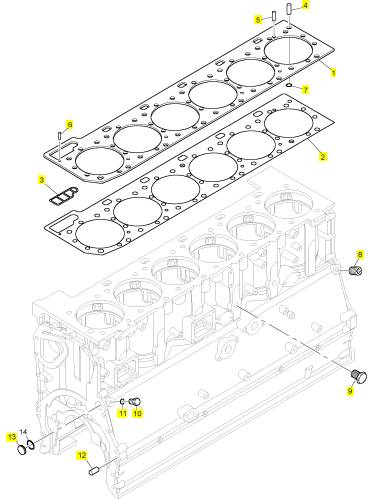

项目 零配件号码 新件号 描述
CH10657 2 CH10657 密封O型圈
CH10663 1 CH10663 栓塞
1 CH10662 1 CH10662 间隔器
1 CH11398 1 CH11398 密封垫
2 1 密封垫
3 1 密封垫
4 CH10661 1 CH10661 合钉
5 CH10656 1 CH10656 合钉
6 CH10659 1 CH10659 合钉
7 CH10660 1 CH10660 密封O型圈
8 CH10221 5 CH10221 栓塞
9 CH10568 2 CH11963 栓塞
10 CH10664 1 CH10664 栓塞
11 CH10667 1 CH10667 密封O型圈
12 CH10658 2 CH10658 合钉
13 T400206 2 T400206 栓塞
13 CH10666 2 CH10666 栓塞
项目 零配件号码 新件号 描述

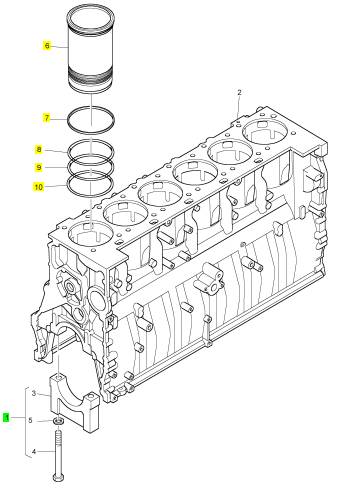

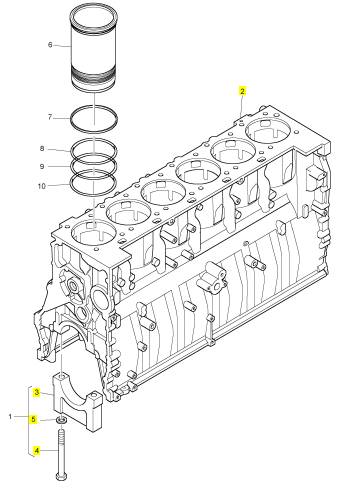

1 T400909 1 T400909 曲轴箱
6 CH12742 6 CH12742 缸套 - 压八配合
7 CH10673 6 CH10673 带
8 CH11654 6 CH11654 密封垫 -油
9 CH11656 6 CH11656 密封垫 -油
10 CH11656 6 CH11656 密封垫 -油
配件号码 新件号 描述
2 1 缸体
3 1 轴承盖
4 T400209 14 T400209 螺拴
5 CH10672 14 CH10672 垫圈

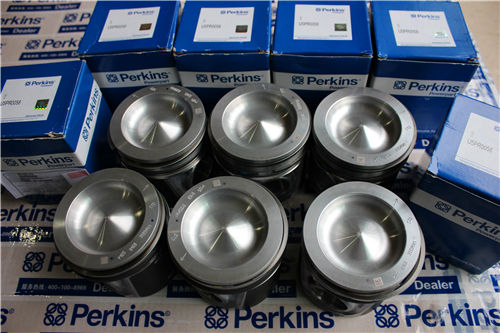

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

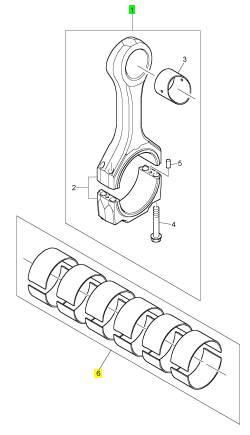

1 CH11507 6 CH11507 CON ROD ASSEMBLY
6 KRP3022 1 KRP3022 BIG END BEARING KIT
(6) KRP3016/064 1 KRP3016/064 BIG END BRG KIT - U/S
(6) KRP3016/127 1 KRP3016/127 BIG END BRG KIT - U/S
项目 零配件号码 新件号 描述
1 CH12344 6 CH12344 活塞冷却喷咀
1 CH12344 6 CH12344 活塞冷却喷咀
1 T400197 6 T400197 活塞冷却喷咀
2 CH10600 6 CH10600 螺拴
2 CH11468 6 CH10600 螺拴

Engine fluids
Fuel specification
Diesel fuel must conform to one of thes e specifications:
ASTM D975 No 1-D or No 2-D
BS 2869: Part 2 1998 Class A2
BS EN 590 1997
General fuel requirements are: Maximum sulphur content 0.2%; minimum Cetane number 45.
Fuel cleanliness
5
The modern, high pressure fuel injection system used on the 2800 Series engine requires a high level of fuel
cleanliness to ensure correct operation and reliability.
The fuel must conform to all aspects of the ASTM D975 specification, but in particular to the requirement for
number 2-D to have less than 0.05% water and sediment. The fuel s hould also be free from biological growth.
If biological growth is suspec ted, c ontact Perkins to discuss a suitable measurement and course of action. For
long term storage of fuel, the recommendations given in ASTM D975 must be followed where appropriate.
The use of fuels which do not conform to the above standards can cause: difficulty with starting, poor
combustion, deposits in the fuel injectors or combustion chamber, reduced servic e life of the fuel system and
filters, reduced engine life and c ould affect the warranty. Further details can be obtained from the Perkins Help
Desk.
Coolant
The coolant approved and recommended for use in 2800 Series is POWERPART ELC (Extended Life
Coolant). This coolant is pre-mix ed and is available in 25 litre (5.5 UK gallon) containers part number
21820181.
There are many benefits for the use of POWERPART ELC coolant.
POWERPART ELC (Extended Life Coolant) uses virtually non-depleting corrosion inhibitors for maximum
protection for the six basic metal alloys: aluminium, brass, c ast iron, copper, solder and steel.
It has a service life of 3000 service hours or 3 years which ever is sooner.
Pre-mixed to the correct strength for optimum protection.
Provides protection to a freezing point of -37 °C (-34 °F).
Provides additional protection against boiling to 106 ° C (223 °F).
Caution: If the recommended coolant and procedures are not used, Perkins Engines Company Limited cannot
be held responsible for damage caused by frost or corrosion, or for loss of cooling efficiency.
Notes:
POWERPART ELC (Extended Life Coolant) must not be mixed with other products or further diluted.
If frost protection is not necessary, it is still rec ommended to use the pre-mixed POWERPART ELC
(Extended Life Coolant) becaus e this gives a protection against corrosion and cavitation erosion.
Before changing to POWERPART ELC (Extended Life Coolant) it is important that the cooling system is
drained and cleaned. For draining and cleaning the cooling system refer to the relev ant User’s Handbook
for the engine.
If required a safety data sheet is available on POWERPART ELC (Extended Life Coolant), please contact
Perkins Help Desk: Fax + 44 (0) 161 776 5100 or Email: specs_help@ perkins.com.
User’s Handbook, TPD1516E, Issue 1
51
This document has been printed from SPI². Not for Resale
5
Water quality
2800 Series
Soft water means de-ionised water, distilled water, rain water or water from a mains supply which has the
following requirements:
Chlorides - 40 mg/l max, sulphates - 100 mg/l max, total hardness 170 mg/l max, total solids 340 mg/l max and
pH of 5.5 to 9.0.
If in doubt consult the local water treatment and supply company.
If soft water is not used, the coolant sy stem may be affected by the formation of hard deposits which can cause
the engine to overheat. This is especially important for engines which have coolant added frequently.
The use of products which are not approv ed for the coolant sy stem may cause serious problems. Coolant
mixtures with insufficient corrosion inhibitor can cause erosion and/or corrosion of coolant system
components.
Lubricating oil specification
The lubricating oil used in the 2806 engine must be a 15W40 oil which conforms to the API CG-4 specification
as a minimum. Oil produced to the higher specification, API CH-4, has greater soot handling capability and
wear resistance leading to longer engine life.
The rec ommendation is that API CH-4 is the preferred oil but API CG-4 is an acceptable alternative.
Oil change period is 500 hours where fuel sulphur is less than 0.2%. Use of fuels having a higher sulphur level
than this will reduce the oil life, which will have to be determined by oil analysis conduc ted by the customer
and a reputable analysis service.
Warranty
The engine must be operated with the approved fuel, lubricant and coolant, and maintained in accordance with
the service schedule or the warranty can become invalid.
52
User’s Handbook, TPD1516E, Issue 1
This document has been printed from SPI². Not for Resale
|
Fault diagnosis
Problems and possible causes
6
|
Possible causes | ||
| Checks by t he user |
Checks by the workshop personnel | |
|
The starter motor turns the engine too slowly |
1, 2, 3, 4 |
|
|
The engine does not start |
5, 6, 7, 8, 9, 10 , 12, 1 3, 14, 15, 17 |
34, 35, 36, 37, 38, 42, 43, 67 |
|
The engine is difficult to start |
5, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19 |
34, 36, 37, 38, 40, 42, 43, 44, 67 |
|
Not enough power |
8, 9, 10 , 11, 12 , 13, 16 , 8, 9, 20 , 21 |
34, 36, 37, 38, 39, 42, 43, 44, 63, 64, 66, 67 |
|
Misfire |
8, 9, 10 , 12, 13 , 15, 20 , 22 |
34, 36, 37, 38, 39, 40, 41, 43, 67 |
|
High fuel consumption |
11, 13, 15, 17, 18, 19, 23, 22 |
34, 36, 37, 38, 39, 40, 42, 43, 44, 63 |
|
Bl ack exha ust smoke |
1 1, 13, 15, 17 , 19, 21, 22 |
34, 36, 37, 38, 39, 40, 42, 43, 44, 63, 64, 67 |
|
Bl ue or white exhaust smoke |
4 , 15, 21 , 23 |
36, 37, 38, 39, 42, 44, 45, 52, 58, 61, 62 |
|
The pressure of the lubricating oil system is too low |
4, 2 4, 25, 2 6 |
46, 47, 48, 50, 51, 59, |
|
The engine kno cks |
9 , 13, 1 5, 17, 2 0, 22, 2 3 |
36, 37, 40, 42, 44, 46, 52, 53, 60 |
|
The engine runs erratically |
8, 9, 10 , 11, 12 , 13, 1 5, 16, 18, 20, 22, 23 |
34, 38, 40, 41, 44, 52, 60, 67 |
|
Vi bration |
13, 18, 20, 27, 28 |
34, 38, 39, 40, 41, 44, 52, 54, 67 |
|
The pressure of the lubricating oil system is too high |
4, 25 |
49 |
|
The engine oil temperature is too high |
11, 13, 15, 19, 27, 29, 30, 32, 65 |
34, 36, 37, 39, 52, 55, 56, 57, 66 |
|
Crankcase pressure |
31, 33 |
39, 42, 44, 45, 52, 61 |
|
Bad compression |
11, 22 |
37, 39, 40, 42, 43, 44, 45, 53, 60 |
|
The engine starts and stops |
10, 11, 12 |
67 |
User’s Handbook, TPD1516E, Issue1
53
This document has been printed from SPI². Not for Resale
6
List of possible causes
1 Battery capacity low.
2 Bad electrical connections.
3 Fault in starter motor.
4 Wrong grade of lubricating oil.
5 Starter motor turns engine too slowly.
6 Fuel tank empty.
7 Fault in stop control.
8 Restriction in a fuel pipe.
9 Fault in fuel lift pump.
10 Dirty fuel filter element.
11 Restriction in air induction system.
12 Air in fuel sys tem.
13 Fault in fuel injectors or fuel injectors of an incorrect type.
14 Cold start system used incorrectly.
15 Fault in cold start system.
16 Restriction in fuel tank vent.
17 Wrong type or grade of fuel used.
18 Restricted movement of engine speed control (not applicable to 2800 series engines).
19 Restriction in exhaust pipe.
20 Engine temperature is too high.
21 Engine temperature is too low.
22 Incorrect valve tip clearances.
23 Too much oil or oil of the wrong type is us ed in wet type air cleaner, if one is fitted.
24 Not enough lubricating oil in sump.
25 Defective gauge.
26 Dirty lubricating oil filter element.
27 Fan damaged.
28 Fault in engine mounting or flywheel housing.
29 Too much lubricating oil in sump.
30 Restriction in air or water passages of radiator.
31 Restriction in breather pipe.
32 Insufficient coolant in system.
33 Vacuum pipe leak or fault in exhauster (not applicable to 2800 series engines).
34 Fault in fuel injection pump.
35 Broken drive on fuel injection pump.
36 Timing of fuel injec tion pump incorrect.
37 Valve timing is incorrect.
38 Bad compression.
39 Cylinder head gasket leaks.
40 Valves are not free.
41 Wrong high-pressure pipes (not applicable to 2800 series engines).
42 Worn cylinder bores.
43 Leakage between valves and seats.
2800 Series
Continued
54
User’s Handbook, TPD1516E, Issue1
This document has been printed from SPI². Not for Resale
2800 Series
44 Piston rings are not free or they are worn or broken.
45 Valve stems and/or guides are worn.
46 Crankshaft bearings are worn or damaged.
47 Lubricating oil pump is worn.
48 Relief valve does not close.
49 Relief valve does not open.
50 Relief valve spring is broken.
51 Fault in suction pipe of lubricating oil pump.
52 Piston is damaged.
53 Piston height is incorrect.
54 Fly wheel housing or flywheel is not aligned correctly.
55 Fault in thermostat or thermostat is of an incorrect type.
56 Restriction in c oolant passages .
57 Fault in water pump.
58 Valve stem seal is damaged.
59 Restriction in sump strainer.
60 Valve spring is broken.
61 Turbocharger impeller is damaged or dirty.
62 Lubricating oil seal of turbocharger leak s.
63 Induction s ystem leaks.
64 Turbocharger impeller is damaged or dirty.
65 Drive belt for water pump is loose.
66 Induction system leaks (turbocharged engines).
67 Faulty engine management system
