Perkins珀金斯850-854F柴油发动机T412680气门导管、座圈、T411783凸轮轴
详细描述

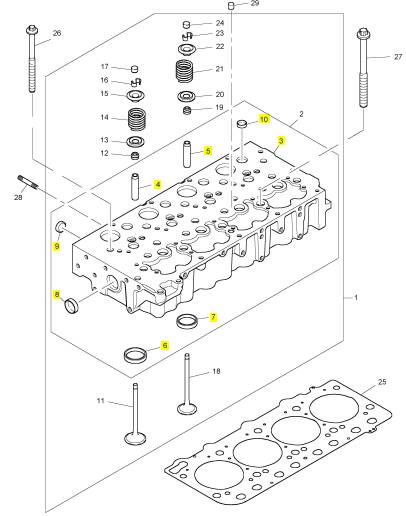

项目 零配件号码 最新件号 描述
3 1 汽缸盖
4 T412680 4 T412680 气门导管
(4) T412954 4 T412954 气门导管 (+)0.2 毫米
(4) T412956 4 T412956 气门导管 (+)0.1 毫米
5 T412680 4 T412680 气门导管
(5) T412954 4 T412954 气门导管 (+)0.2 毫米
(5) T412956 4 T412956 气门导管 (+)0.1 毫米
6 T412672 4 T412672 阀座气门座圈
7 T412670 4 T412670 阀座气门座圈
8 T412433 1 T412433 栓塞
9 T411795 4 T411795 栓塞
10 T411760 8 T411760 栓塞

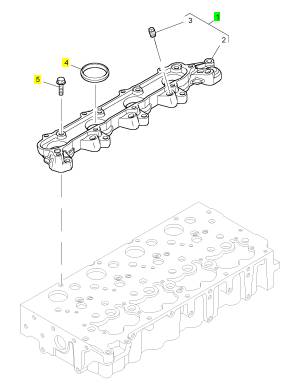

项目 零配件号码 最新件号 描述
1 T411786 1 T411786 承接器
4 T412679 4 T412679 密封 - O 的圈
5 T412314 9 T412314 螺旋

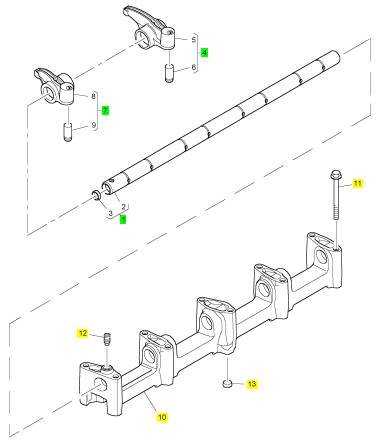

项目 零配件号码 最新件号 描述
1 T412080 1 T412080 摇臂轴
4 T413832 4 T413832 摇杆杆
7 T412346 4 T412346 摇杆杆
10 T412049 1 T412049 托架
11 T412351 10 T412351 螺旋
12 T411897 1 T411897 螺旋
13 T411885 1 T411885 栓塞

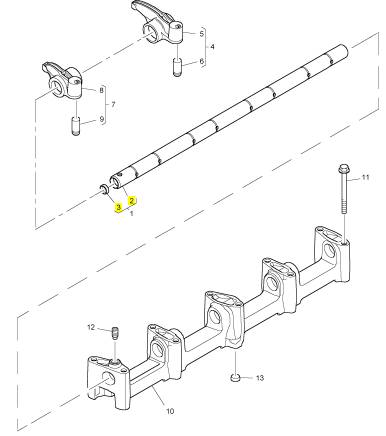

项目 零配件号码 最新件号 描述
2 1 摇臂轴
3 T411885 2 T411885 栓塞

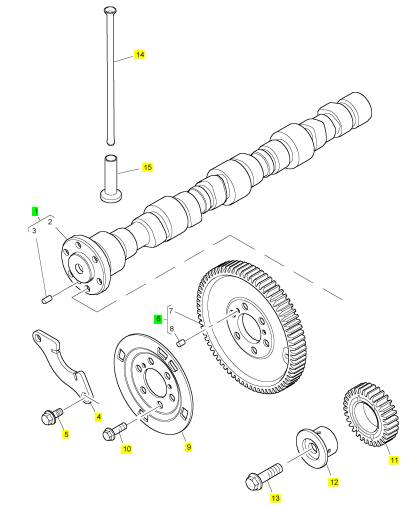

项目 零配件号码 最新件号 描述
1 T411783 1 T411783 凸轮轴
4 T411784 1 T411784 轭
5 T412379 2 T412379 螺旋
6 T411837 1 T411837 凸轮轴传动机构
9 T411966 1 T411966 凸缘
10 T412343 6 T412343 螺旋
11 T411758 1 T411758 惰轮传动机构
12 T411851 1 T411851 惰轮传动机构衬套
13 2314 J706 1 2314 J706 螺旋
14 T411763 8 T411763 PUSHROD
15 T411892 8 T411892 挺杆

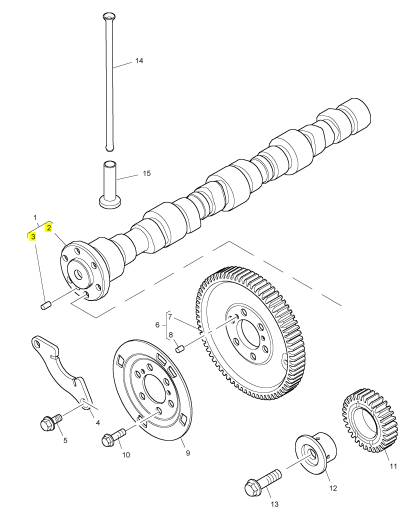

项目 零配件号码 最新件号 描述
2 1 凸轮轴
3 T411762 1 T411762 合钉
|
Timing case and drive assembly |
|
6 |
|
Fuel injection pump |
|
To remove and to fit |
|
Operation 6-1 |
|
Special requirements Torque Nm (lbf ft) kgf m |
|
Solenoid |
|
17 (12) 1,7 |
|
When the shim (A1) is not required, assemble using a 0,5 mm bead of silicone sealant. |
|
Note: Blank off the connections of the fuel injection pump until assembly. |
|
1 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
65 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|

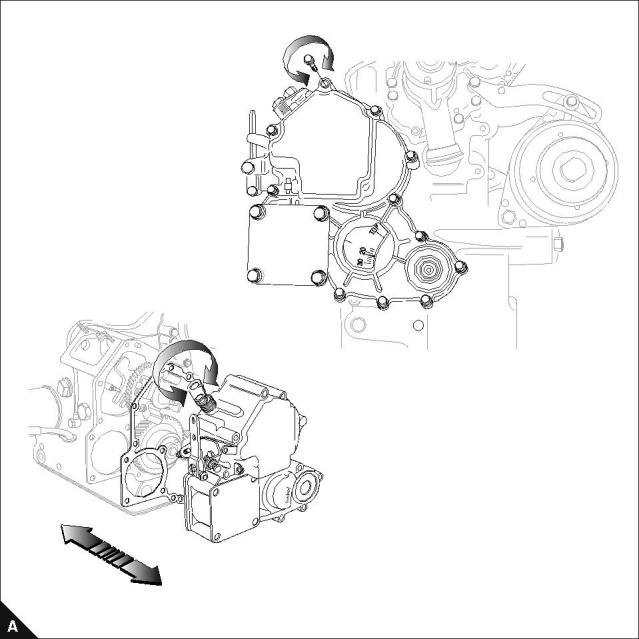

Timing cover |
|
To remove and to fit |
|
Operation 6-2 |
|
For crankshaft pulley removal refer to Operation 5-1. |
|
Notes: |
|
Make sure that the governor springs are correctly attached before the timing cover is fitted, see Operation 6-14. |
|
On assembly hold arm clockwise. |
|
After fitting the timing cover, look through the ESOS mounting holeand check that the linkage moves correctly when the throttle lever on the fuel injection pump is operated. |
|
For emissions approved engines. The fuel adjustment screw should not be altered from original setting. The Maximum No Load Speed must be checked after assembly. |
|
If a new timing case is fitted, a new emissions label must be fitted. |
|
66 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|

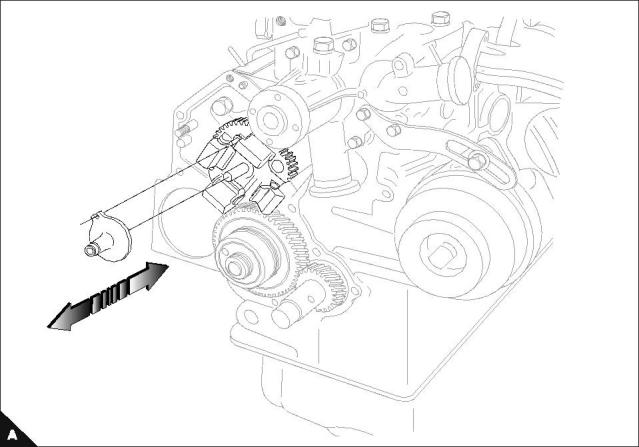

Slider |
|
To remove and to fit |
|
Operation 6-3 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
67 |
|
This document has been printed from SPI². Not for Resale |
|
6 |
|
100 Series |
|
Camshaft retainer plate |
|
To remove and to fit |
|
Operation 6-4 |
|
Special requirements |
|
Torque Nm (lbf ft) kgf m |
|
Camshaft retainer plate setscrews |
|
11 (8) 1,1 |
|
Notes: |
|
For emissions approved engines. The fuel adjustment screw must not be altered from the original setting. The maximum No Load Speed must be checked after assembly. |
|
68 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
