康明斯N14、L10、M11、ISM、Signature™、ISX/QSX11.9/12 CM2250、ISX12 G CM2180、ISX/QSX15 CM2250、ISX12 CM2350、ISX15 CM2350、CENTRY™ 和 QSNT油门传感器内部执行器线束配件
康明斯N14、L10、M11、ISM、Signature™、ISX/QSX11.9/12 CM2250、ISX12 G CM2180、ISX/QSX15 CM2250、ISX12 CM2350、ISX15 CM2350、CENTRY™ 和 QSNT油门传感器内部执行器线束配件
|

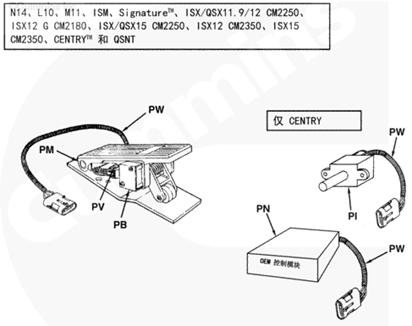

FAILURE CODE EY |
|
Failure Code Details | ||
|
部件代码 |
Component Description |
故障模式 |
|
PB |
位置传感器 |
AW BR HR ID LR MA MM OC SE SR UN WO WP |
|
PI |
整体式电位计（仅限 CENTRY™） |
AW BR HR ID LR MA MM OC SE SR UN WO WP |
|
PM |
安装紧固件 |
BE BR MA MM WP |
|
PN |
OEM 控制模块（仅限 CENTRY™） |
AW BR HR ID LR MA MM OC SE SR UN WO WP |
|
PV |
怠速有效开关或传感器 |
BR CU HR MA MM OC SR WO WP |
|
PW |
位置传感器康明斯导线 |
BE BR MA MM WP |
|

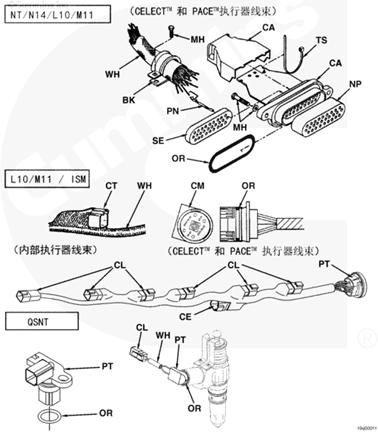

FAILURE CODE HB |
|
Failure Code Details | ||
|
部件代码 |
Component Description |
故障模式 |
|
CE |
Deutsch 3 针接头 |
BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP |
|
CL |
Deutsch 2 针接头 |
BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP |
|
CM |
12 路 metri-pack 接头 |
BR BU ID LO MA MM OC SR WO WP |
|
CT |
2 路 metri-pack 接头 |
BR BU CU MA MM WO WP |
|
OR |
O 形圈 |
BR BU ID LO MA MM WP |
|
PT |
贯穿式接头 |
BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP |
|
WH |
康明斯导线线束 |
BR CU HR ID MA MM OC SR WO WP |
|

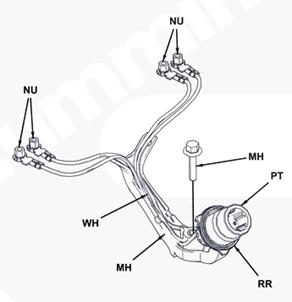

FAILURE CODE HB |
|
Failure Code Details | ||
|
部件代码 |
Component Description |
故障模式 |
|
MH |
安装硬件 |
BR MA WO WP |
|
NU |
喷油器螺母 |
BR MA MM SR WP |
|
PT |
贯穿式接头 |
BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP |
|
RR |
座圈 |
BE BR MA MM WO WP |
|
WH |
康明斯导线线束 |
BR CU HR ID MA MM OC SR WO WP |
|

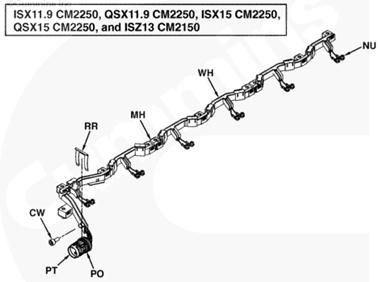

FAILURE CODE HB |
|
Failure Code Details | ||
|
部件代码 |
Component Description |
故障模式 |
|
CW |
座圈安装螺钉 |
BR MA WO WP |
|
JU |
压缩制动锁紧螺母（未显示） |
BR MA MM SR WP |
|
MH |
安装硬件 |
BR MA WO WP |
|
NU |
喷油器螺母 |
BR MA MM SR WP |
|
WH |
喷油器/发动机制动线束 |
BR MA OC SR |
|
PO |
贯穿式接头 O 形圈 |
BR LO MA WP |
|
PT |
贯穿式电气接头 |
BR CU LO LW MA MM WP |
|
RR |
座圈 |
BE BR MA MM WO WP |
|

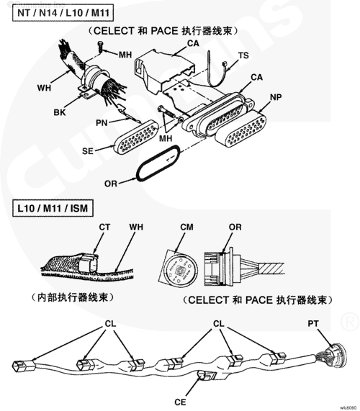

FAILURE CODE HB |
|
Failure Code Details | ||
|
部件代码 |
Component Description |
故障模式 |
|
BK |
支架 |
BR MA MM WP |
|
CA |
amp 接头 |
BR BU ID MA MM OC SR WO WP |
|
CE |
detusch 3-针接头 |
BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP |
|
CL |
deutsch™ 2-针接头 |
BE BO BR CO CU ER HR ID LR LW MA MMMW OC SR WO WP |
|
CM |
12 路 metri-pack™ 接头 |
BR BU ID LO MA MM OC SR WO WP |
|
CT |
2 路 metri-pack™ 接头 |
BR BU CU MA MM WO WP |
|
MH |
安装紧固件 |
BE BR MA MM WP |
|
NP |
突鼻件 |
BR ID LW MA MM WO WP |
|
OR |
O 形圈 |
BR BU ID LO MA MM WP |
|
PN |
销 |
BR ID LW MA MM WO WP |
|
PT |
贯穿式接头 |
BE BO BR CO CU ER HR ID LR LW MA MMMW OC SR WO WP |
|
SE |
amp 接头密封件 |
BR ID LW MA MM WD WP |
|
TS |
扎带 |
BR BU MA MM WO |
|
WH |
康明斯导线线束 |
BR CU HR ID MA MM OC SR WO WP |
