FAILURE CODE EU
电气康明斯导线线束 (PT™ PACER、CENTRY™ 和 CELECT™ Plus)
NT、N14、L10

Failure Code Details
部件代码	Component Description	故障模式
BK	卡箍安装支架	BE BR CU MA MM WO WP
CA	10 号环形接头	BR BU ER ID MA MM WO WP
CB	电动 STC 引线环形接头	BR BU ER CO MA MM WO WP
CD	1/2 in 环形接头	BR BU ER ID MA MM WO WP
CE	EFC 模压 90 度接头	BR BU ER ID MA MM WO WP
CF	Cannon™ 接头	BE BR BU CO MA MM WO WP
CL	接头标签	BR MA WP
CN	Weatherpack™ 接头	BR BU ER ID MA MM SR WO WP
CS	ECM (Cannon™) 接头螺钉	BR
DC	C5 或 C6 (Deutsch™) 接头	BR BU ID MA MM OC SR WO WP
DL	锁环	BR MA MM
FF	保险丝	BR BU CO HR OC
FH	保险丝座	BR BU CO HR MA MM SR WO WP
MC	RPS（3 路 metri-pack™）接头	BR BU ID MA MM OC SR WO WP
PD	Deutsch™ 针	BR CU LW MA MM WO WP
PN	Weatherpack™ 销	BR BU CO CU HR LW MA MM WO WP
SA	Deutsch™ 密封件	BR CU ID LW MA MM WO WP
SL	Weatherpack™ 密封件	BE BR CU ER LA MA MM WO WP
TS	扎带	BR BU MA MM WO
WH	康明斯导线线束	BE BR CO HR LR MA SR WO WP

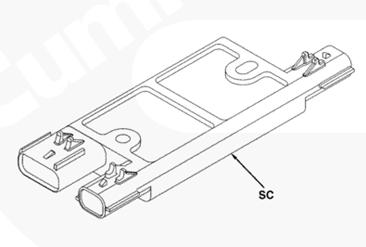

FAILURE CODE EU
温度接口模块
ISX11.9 和 ISX15

Failure Code Details
部件代码	Component Description	故障模式
MH	安装件（未显示）	BE BR MA MM WO
SC	后处理 SCR 催化器温度传感器接口模块	BR BU HR LR MW OC SR

FAILURE CODE EU
温度接口模块
ISX11.9 CM2250、QSX11.9 CM2250、ISX15 CM2250 和 QSX15 CM2250

Failure Code Details
部件代码	Component Description	故障模式
MH	安装硬件（未显示）	BE BR MA MM WO
PF	后处理柴油微粒滤清器温度传感器接口模块	BR BU HR LR MW OC SR BU

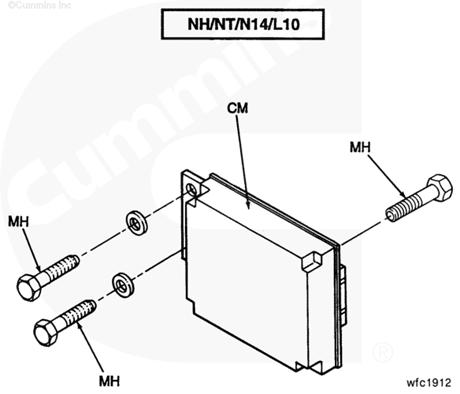

FAILURE CODE EV
PT™ PACER 模块
NH、NT、N14、L10

Failure Code Details
部件代码	Component Description	故障模式
CM	PACER 控制单元	AW BR CO CU ID MA MM WP
MH	安装硬件	BE BR CU MA MM WP
PC	可调特性/参数（未显示）	NP PW

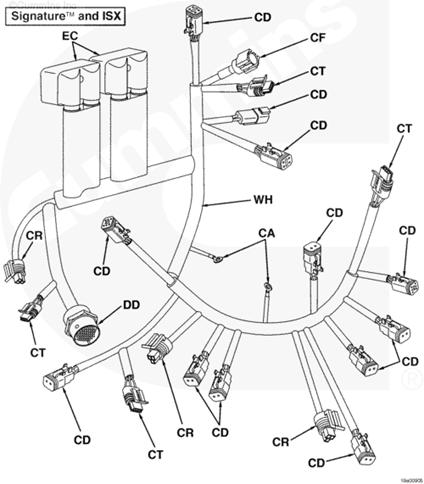

FAILURE CODE EX
发动机康明斯导线线束总成 (Signature™)
Signature™、ISX

Failure Code Details
部件代码	Component Description	故障模式
CA	10 号环形接头	BR BU ER ID MA MM WO WP
CD	packard™	BR BU ER ID MA MM WO WP
CF	cannon™ 8 针接头	BE BR BU CO MA MM WO WP
CR	3 路 metri-pack™	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
CT	3 路 weather pack™	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
DD	deutsch™ 31 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
EC	deutsch™ 50 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP

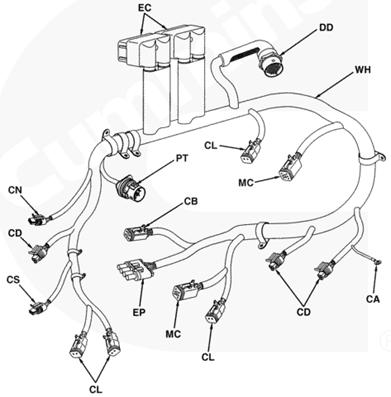

FAILURE CODE EX
发动机康明斯导线线束总成
ISM

Failure Code Details
部件代码	Component Description	故障模式
CA	10 号环形接头	BR BU ER ID MA MM WO WP
CB	deutsch™ 4 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
CD	packard™ 3 针接头	BR BU ER ID MA MM WO WP
CL	deutsch™ 2 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
CN	packard™ 2 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
CS	2 路 metri-pack™ 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
DD	deutsch™ 31 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
EC	deutsch™ 50 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
EP	4 路 weather pack™ 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
MC	deutsch™ 6 针接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
PT	贯穿式接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP

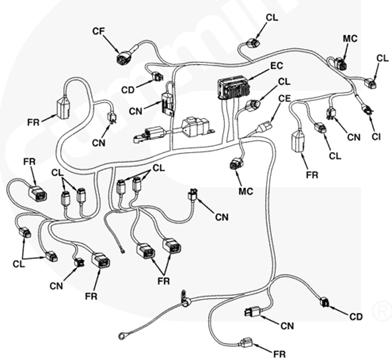

FAILURE CODE EX
发动机康明斯导线线束总成
Signature™、ISX

Failure Code Details
部件代码	Component Description	故障模式
CD	3 针 packard	BR BU ER ID MA MM WO WP
CF	8 针 ITT CANNON	BR BU ER ID MA MM WO WP
CI	3 针 amp	BR BU ER ID MA MM WO WP
CL	2 针 deutsch	BR BU ER ID MA MM WO WP
CN	2 针 packard	BR BU ER ID MA MM WO WP
FR	3 针 Framatome	BR BU ER ID MA MM WO WP
MC	6 针 deutsch	BR BU ER ID MA MM WO WP
WH	康明斯导线线束	BR BU ER ID MA MM WO WP

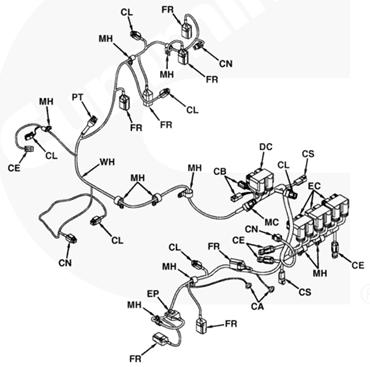

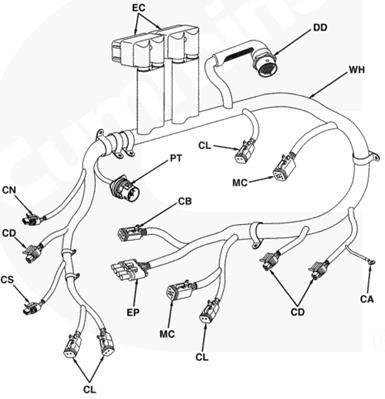

FAILURE CODE EX
发动机康明斯导线线束总成
ISM

Failure Code Details
部件代码	Component Description	故障模式
CA	10 号环形接头	BE BR CO CU HR ID LR MA MM MW OC SR WO WP
CB	4 针 Deutsch 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
CE	3 针 Deutsch 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
CL	2 针 Deutsch 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
CN	2 针 Packard 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
CS	2 路 metripak 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
DC	60 针 Deutsch 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
EC	50 针 Deutsch 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
EP	4 路 weatherpack 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
FR	3 针 framatome 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
MC	6 针 Deutsch 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
MH	安装紧固件	BE BR CO CU ID MA MM WO WP
PT	贯穿式接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
WH	康明斯导线线束	BE BR BU CU HR ID LR MA MM MW OC SR WO WP

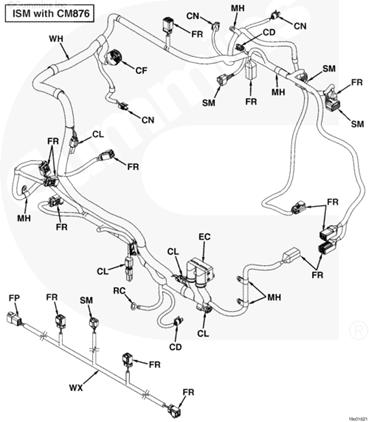

发动机康明斯导线线束总成
带 CM876 的 ISM

Failure Code Details
部件代码	Component Description	故障模式
CD	3-针 Packard 接头	BE BU ER ID MA MM WO WP
CF	8-针 ITT Canon 接头	BE BU ER ID MA MM WO WP
CL	2-针 Deutsch 接头	BE BU ER ID MA MM WO WP
CN	2-针 Packard 接头	BE BU ER ID MA MM WO WP
EC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FP	8-针 Deutsch 接头	BE BU ER ID MA MM WO WP
FR	3-针 Framatone 接头	BE BU ER ID MA MM WO WP
MH	安装紧固件	BE BR CU MA MM WP
RC	1/2 in 环形端子	BR BU ER ID MA MM WO WP
SM	4-针 Sumitomo 接头	BE BU ER ID MA MM WO WP
WH	康明斯导线线束总成	BR BU ER ID MA MM WO WP
WX	后处理康明斯导线线束	BR BU ER ID MA MM WO WP

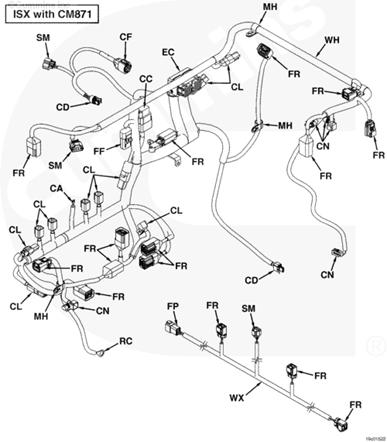

FAILURE CODE EX
发动机康明斯导线线束总成
带 CM871 的 ISX

Failure Code Details
部件代码	Component Description	故障模式
CC	5-针 Packard 接头	BE BU ER ID MA MM WO WP
CD	3-针 Packard 接头	BE BU ER ID MA MM WO WP
CF	8-针 ITT Canon 接头	BE BU ER ID MA MM WO WP
CL	2-针 Deutsch 接头	BE BU ER ID MA MM WO WP
CN	2-针 Packard 接头	BE BU ER ID MA MM WO WP
EC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FR	3-针 Framatone 接头	BE BU ER ID MA MM WO WP
FP	8-针 Deutsch 接头	BE BU ER ID MA MM WO WP
MH	安装紧固件	BE BR CU MA MM WP
RC	1/2 in 环形端子	BR BU ER ID MA MM WO WP
SM	4-针 Sumitomo 接头	BE BU ER ID MA MM WO WP
WH	康明斯导线线束总成	BR BU ER ID MA MM WO WP
WX	后处理康明斯导线线束	BR BU ER ID MA MM WO WP

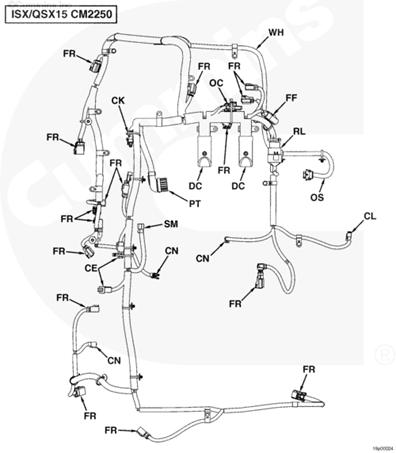

FAILURE CODE EX
发动机康明斯导线线束总成
ISX/QSX15 CM2250

Failure Code Details
部件代码	Component Description	故障模式
CE	3 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CK	tyco™ 接头	BR BU ER ID MA MM WO WP
CL	2 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CN	2 针 packard™ 接头	BE BU ER ID MA MM WO WP
DC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FF	保险丝	BE BU ER ID MA MM WO WP
FR	framatone™ 接头	BE BU ER ID MA MM WO WP
OC	OEM 接口接头	BR BU ER ID MA MM WO WP
OS	氮氧化物传感器接头	BE BU ER ID MA MM WO WP
PT	贯穿式接头	BE BU ER ID MA MM WO WP
RL	继电器	BE BU ER ID MA MM WO WP
SM	sumitomo™ 接头	BE BU ER ID MA MM WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP

FAILURE CODE EX
发动机康明斯导线线束总成
ISZ/QSZ13

Failure Code Details
部件代码	Component Description	故障模式
CE	3-针 Deutsch™ 接头	BE BR BU CU HR ID LR MA MM MW OC SR WO WP
CL	2-针 Deutsch™ 接头	BE BU ER ID MA MM WO WP
CN	2-针 Packard™ 接头	BE BU ER ID MA MM WO WP
EC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FR	Framatone™ 接头	BE BU ER ID MA MM WO WP
PT	贯穿式接头	BE BU ER ID MA MM WO WP
RC	环形端子	BR BU ER ID MA MM WO WP
SM	Sumitomo™ 接头	BE BU ER ID MA MM WO WP

FAILURE CODE EX

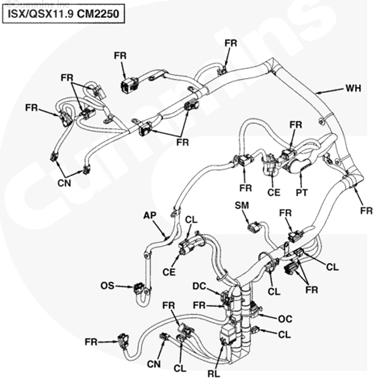

发动机康明斯导线线束总成
ISX/QSX11.9 CM2250

Failure Code Details
部件代码	Component Description	故障模式
AP	3 针 amp™ 接头	BE BU ER ID MA MM WO WP
CE	3 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CL	2 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CN	2 针 packard™ 接头	BE BU ER ID MA MM WO WP
DC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FR	framatone™ 接头	BE BU ER ID MA MM WO WP
OC	OEM 接口接头	BE BU ER ID MA MM WO WP
OS	氮氧化物传感器接头	BE BU ER ID MA MM WO WP
RC	环形端子（未显示）	BR BU ER ID MA MM WO WP
RL	继电器	BE BU ER IS MA MM SR WP
PT	贯穿式接头	BE BU ER ID MA MM WO WP
SM	sumitomo™ 接头	BE BU ER ID MA MM WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP

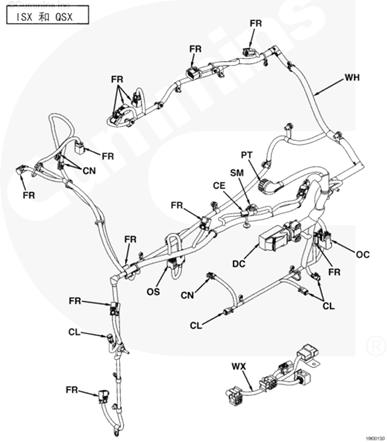

FAILURE CODE EX
发动机康明斯导线线束总成
ISX 和 QSX

Failure Code Details
部件代码	Component Description	故障模式
CE	3 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CL	2 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CN	2 针 packard™ 接头	BE BU ER ID MA MM WO WP
DC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FR	Framatome™ 接头	BE BU ER ID MA MM WO WP
OC	氮氧化物传感器接头	BE BU ER ID MA MM WO WP
OS	氮氧化物传感器接头	BE BU ER ID MA MM WO WP
PT	贯穿式接头	BE BU ER ID MA MM WO WP
SM	sumitomo™ 接头	BE BU ER ID MA MM WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP
WX	后处理康明斯导线线束	BE BU ER ID MA MM WO WP

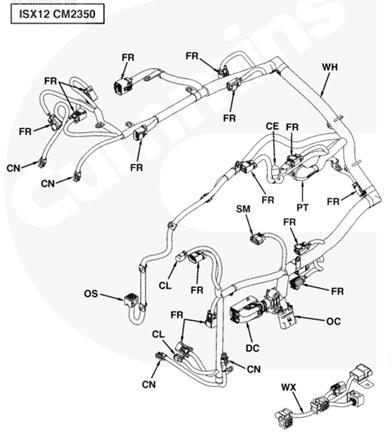

FAILURE CODE EX
发动机康明斯导线线束总成
ISX12 CM2350

Failure Code Details
部件代码	Component Description	故障模式
CE	3 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CL	2 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CN	2 针 packard™ 接头	BE BU ER ID MA MM WO WP
DC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FR	Framatome™ 接头	BE BU ER ID MA MM WO WP
OC	OEM 接口接头	BR BU ER ID MA MM WO WP
OS	氮氧化物传感器接头	BE BU ER ID MA MM WO WP
PT	贯穿式接头	BE BU ER ID MA MM WO WP
SM	sumitomo™ 接头	BE BU ER ID MA MM WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP
WX	后处理康明斯导线线束	BE BU ER ID MA MM WO WP

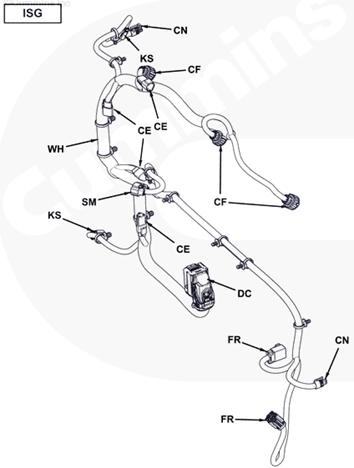

FAILURE CODE EX
发动机康明斯导线线束总成
ISG

Failure Code Details
部件代码	Component Description	故障模式
CE	3 针 deutsch™ 接头	BE BU ER ID MA MM WO WP
CF	amp 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
CN	2 针 packard™ 接头	BE BU ER ID MA MM WO WP
DC	ECM 接头	BE BO BR CO CU ER HR ID LR LW MA MM MW OC SR WO WP
FR	Framatome™ 接头	BE BU ER ID MA MM WO WP
KS	kostal 接头	BR BU ER ID MA MM WO WP
SM	sumitomo™ 接头	BE BU ER ID MA MM WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP

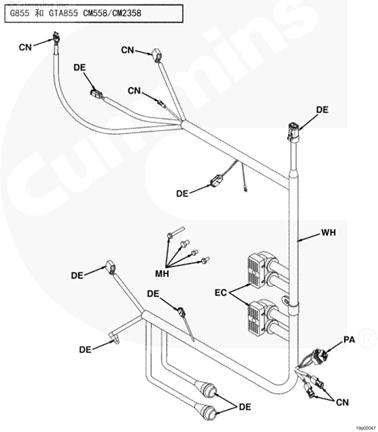

FAILURE CODE EX
发动机康明斯导线线束总成
G855 和 GTA855 CM558/CM2358

Failure Code Details
部件代码	Component Description	故障模式
CN	weather pack™ 接头	BR CU HR MA MM OC SR WO WP
DE	deutsch™ 接头	BR CU HR MA MM OC SR WO WP
EC	ECM 接头	BER CU HR MA MM OC SR WO WP
MH	安装紧固件	BE BR CU MA MM WP
PA	packard™ 接头	BE BR BU ER HR ID MA MM MW OC SR WO WP
WH	发动机康明斯导线线束总成	BR BU ER ID MA MM WO WP
