缸体总成

John Deere约翰迪尔强鹿柴油发动机缸体总成配件销售维修维护技术零件资料手册

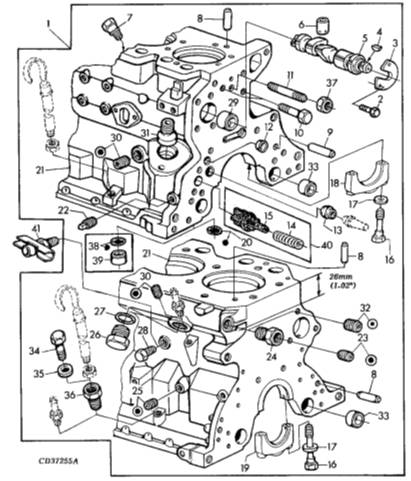

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 RE51870 KIT 1 X W/ INSTRUCTIONS

2 19H2676 CAP SCREW 2 X 3/8" X 1", (SAE 8)

3 T20072 PLATE 1 X

4 26H72 SHAFT KEY 1 X 1/8" X 5/8"

5 .................. CAMSHAFT 1 X MARKED R115335, ORD KIT RE55901

6 T20073 TAPPET 8 X

7 R54802 ORIFICE 4 X

8 A120R DOWEL PIN 4 X

9 B153R DOWEL PIN 2 X LOW

10 19H1726 CAP SCREW 2 X 3/8" X 2-1/4"

11 R130883 STUD 1 X LGTH 47MM, 3/8"-16NC X 3/8"-16UNC

12 T18891 CAP 1 X

13 R26493 BUSHING 1 X

14 .................. SPRING 1 X LGTH 51MM, NSEP, ORDER KIT RE63674

15 .................. VALVE 1 X LGTH 41MM, NSEP, ORDER KIT RE63674

16 T23474 CAP SCREW 10 X

17 R32214 WASHER 10 X

18 R65215 BEARING CAP 4 X

19 R79089 CAP 1 X REAR

20 R97185 O-RING 1 X

21 .................. CYLINDER BLOCK 1 X MARKED R116194, NSEP, ORDER KIT RE51870

22 15H623 PIPE PLUG 1 X 3/8"-18NPT

23 15H690 PIPE PLUG 1 X 3/4"-14NPTF USE WITH 15H690

24 15H616 PIPE BUSHING 1 X 1"-11.5NPTF X 3/4"-14NPTF USE WITH 15H665

25 R104592 PIPE PLUG 5 X 1/8"-27NPT, WITH SEALANT

26 RE502422 DRAIN PLUG 1 X

27 R501377 O-RING 1 X

28 R55233 PIPE PLUG 1 X 1/4"-18NPT

29 R119874 BUSHING 1 X (ALSO ORDER TY6333)

30 15H584 PIPE PLUG 2 X 1/2"-14NPT

31 T23435 THREADED NIPPLE 1 X

32 15H562 PIPE PLUG 1 X 1"-11.5NPTF

33 R119210 BUSHING 6 X OD STD

R91708 BUSHING AR X OS +2MM

34 19H2351 CAP SCREW 1 X 1/2" X 1/2"

35 T24608 WASHER 1 X

36 R121194 ADAPTER 1 X 1/2"-13UNC X 1/2"-14NPTF

37 14H1076 NUT 1 X 3/8"-16UNC, HS SAE 8

38 R75892 O-RING 1 X (USE WITH R75893)

39 R75893 FITTING 1 X (USE WITH R75892)

40 RE63674 KIT 1 X

41 AT13740 DRAIN VALVE AR X
