沃尔沃TWD1620G柴油发动机缸套套件活塞活塞环曲轴瓦连杆瓦原厂配件销售批发服务商
21曲柄机构
TWD1620G
参考零件号数量说明注释

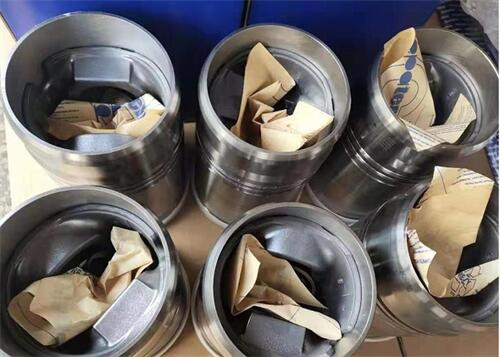

1 876572 6缸套套件
2 6缸套
3 6活塞
4 1556940 6活塞销（1556200）L=120mm
5 914532 12卡环
6 270935 6密封圈套件
7.6密封圈
8 6密封圈
9 18密封圈
10 3826935 6活塞环套件
11.6压缩环
12 6压缩环
13 6刮油环
13A 1548125 X垫片TH=0.20mm
1548126 X垫片TH=0,30mm
1548127 X垫片TH=0,50mm
14 1161277 X密封胶20g
15 863794 6连杆16 1543035 12螺钉
17 1543034 6衬套
18 270796 6大端轴承套件STD D 270797 6大端轴承套件美国=0,25mm 270798 6大端轴承套件美国=0,50mm 270799 6大端轴承套件美国=0,75mm
19 863792 1曲轴20 978130 6螺塞
21 422253 1个半圆键22 950645 1个销
23 270792 7主轴承套件STD D 270793 7主轴承套件美国=0,25mm 270794 7主轴承套件美国=0,50mm 270795 7主轴承套件美国=0,75mm
24 270929 1止推垫圈套件STD D 270930 1止推垫圈套件O.S=0,10mm 270931 1止推垫圈套件O.S=0,20mm 270932 1止推垫圈套件O.S=0,30mm
25 1543444 1档
26 3825678 1飞轮SN-2160048210
889617 1飞轮SN2160048211-
27 8193939 1齿圈
28 849912 14飞轮螺钉3825678。
1677893 14飞轮螺钉889617。
29 1543563 14垫圈
30 848851 1集线器
31 945512 1个O形圈
32 1543834 2减震器33 422124 1垫圈
34 862504 1个螺钉
35 3825893 1个V形皮带轮3槽。早期生产的6个螺钉替换为12个螺钉。
36 3829683 1耐磨环
37 973253 12个螺钉早期生产的6个螺钉被12个螺钉取代。
38 4956010 12垫圈早期生产的6个螺钉替换为12个螺钉。
39 955974 12 O形圈早期生产的6个螺钉被12个螺钉取代。
40 862616 1轮毂更换为1个ea 3825885轮毂、1个ea 3825893皮带轮、2个ea 3825886垫片、6个ea 973
3825885 1轮毂
41 3825886 2垫圈早期生产的6个螺钉替换为12个螺钉。
Crank Mechanism
TWD1620G
Ref Part No. Qty Description Notes
1 876572 6 Cylinder liner kit
2 6 Cylinder liner
3 6 Piston
4 1556940 6 Piston pin (1556200) L=120mm
5 914532 12 Snap ring
6 270935 6 Sealing ring kit
7 6 Sealing ring
8 6 Sealing ring
9 18 Sealing ring
10 3826935 6 Piston ring kit
11 6 Compression ring
12 6 Compression ring
13 6 Oil scraper ring
13A 1548125 X Shim TH=0,20mm
1548126 X Shim TH = 0,30mm
1548127 X Shim TH = 0,50mm
14 1161277 X Sealant 20g
15 863794 6 Connecting rod 16 1543035 12 Screw
17 1543034 6 Bushing
18 270796 6 Big end bearing kit STD D 270797 6 Big end bearing kit U.S=0,25mm 270798 6 Big end bearing kit U.S=0,50mm 270799 6 Big end bearing kit U.S=0,75mm
19 863792 1 Crankshaft 20 978130 6 Plug
21 422253 1 Woodruff key 22 950645 1 Pin
23 270792 7 Main bearing kit STD D 270793 7 Main bearing kit U.S=0,25mm 270794 7 Main bearing kit U.S=0,50mm 270795 7 Main bearing kit U.S=0,75mm
24 270929 1 Thrust washer kit STD D 270930 1 Thrust washer kit O.S=0,10mm 270931 1 Thrust washer kit O.S=0,20mm 270932 1 Thrust washer kit O.S=0,30mm
25 1543444 1 Gear
26 3825678 1 Flywheel SN-2160048210
889617 1 Flywheel SN2160048211-
27 8193939 1 Gear ring
28 849912 14 Screw For flywheel 3825678.
1677893 14 Screw For flywheel 889617.
29 1543563 14 Washer
30 848851 1 Hub
31 945512 1 O-ring
32 1543834 2 Vibration damper 33 422124 1 Washer
34 862504 1 Screw
35 3825893 1 V-belt pulley 3 GROOVE. Earlier production of 6 ea of screw is replaced by 12 ea screw.
36 3829683 1 Wear ring
37 973253 12 Screw Earlier production of 6 ea of screw is replaced by 12 ea screw.
38 4956010 12 Washer Earlier production of 6 ea of screw is replaced by 12 ea screw.
39 955974 12 O-ring Earlier production of 6 ea of screw is replaced by 12 ea screw.
40 862616 1 Hub Replaced by 1 ea 3825885 hub, 1 ea 3825893 pulley, 2 ea 3825886 gasket, 6 ea 973
3825885 1 Hub
41 3825886 2 Gasket Earlier production of 6 ea of screw is replaced by 12 ea screw.
